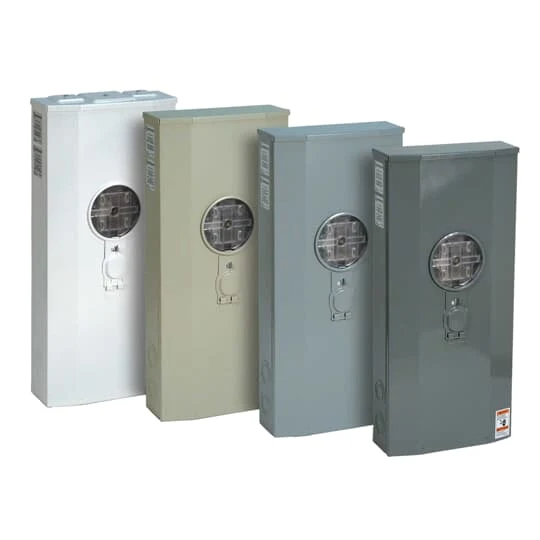

METER SOCKET UNDERGROUND 320A 120/240 COMPLETE W/BYPASS

Catalog Number: BP320-TV-250
Product ID: 7TBA050680R0024
UPC Number: 62487101205
Status: A
Meter socket 320A 120/240V underground complete with bypass grey with connector kit 2 x 250 kcmil.

North American Specifications (UNSPSC)
UNSPSC 39121102 Meter centers or sockets
IGCC 4325 Residential Single Meter Sockets
Brand Name Microlectric
Type Meter Sockets
Special Features Supplied with screw type sealing ring
Application For underground installation
Standard CSA 27716
Voltage Rating 600V
Phase 1 Phase
Size 34-1/16 Inches Height x 5-15/16 Inches Width x 15-
9/16 Inches Depth
Enclosure Weatherproof Type 3R

Packaging
Outer Quantity 1
Outer Dimensions (inches) 34x5x15
Weight Uom 60 lbs. Each
