METER SOCKET TRANS.RATED 20A 600V 4-JAW LOWER TEST SWITCH

Transformer Rated c/w Test Switch. 4 jaw. Factory pre-wired unit with lockout device on bottom door.

General
Type: CL, AB, CT, CT-SWL Series
Maximum Voltage: 600

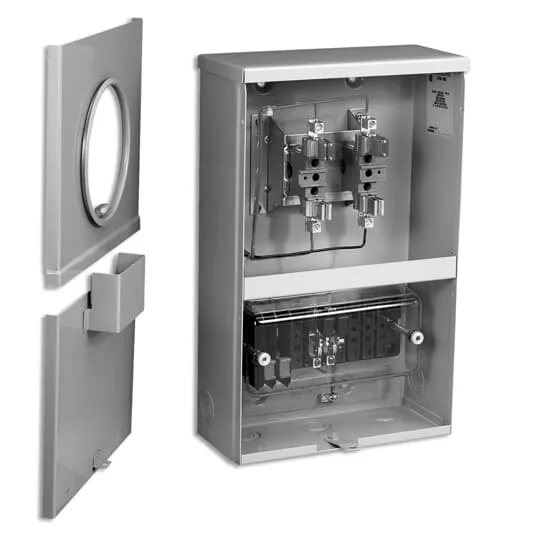

Notes for picture: Picture represents the CT-SWL Series. Please refer to the specifications.
Ampere: 20
Application: Primarily used in Alberta
T&B UPC: 62487100245
T&B Status: M

Dimension Information
Conductor Range: 14-10 AWG
Depth (in.): 5-7/16
Height (in.): 19-1/8
Width (in.): 11-13/16
