METER SOCKET COMB/OVERHD 200A 4-JAW 4X 100A PRO.22KA

4 gang with provision c/w 4 x 100 A type Q breakers 22 kA Siemens breaker as per Hydro Quebec spec.

General
Type: CO1 Multi-Gang
Maximum Voltage: 120/240

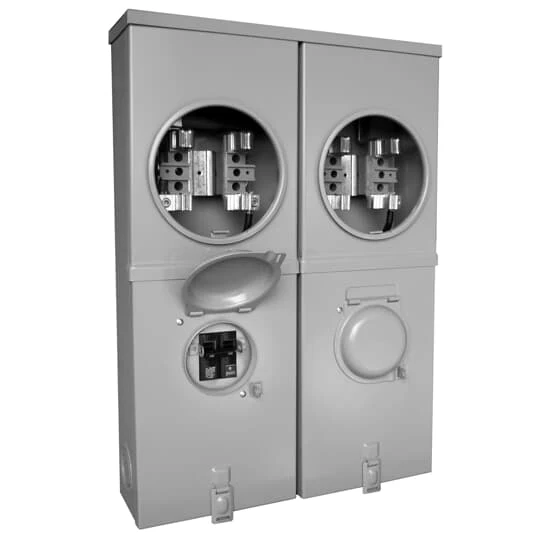

Notes for picture: Picture represents the CO1 Multi-Gang. Please refer to the specifications.
Ampere: 100
Application: All provinces, Quebec only as per Hydro QC spec (supplied with
22 kA Siemens breaker)
T&B UPC: 62487100539
T&B Status: M

Dimension Information
Conductor Range: Line: 6 AWG - 250 kcmil / Load: 6-1/0 AWG
Depth (in.): 4-3/8
Height (in.): 23-1/2
Width (in.): 33-1/8
