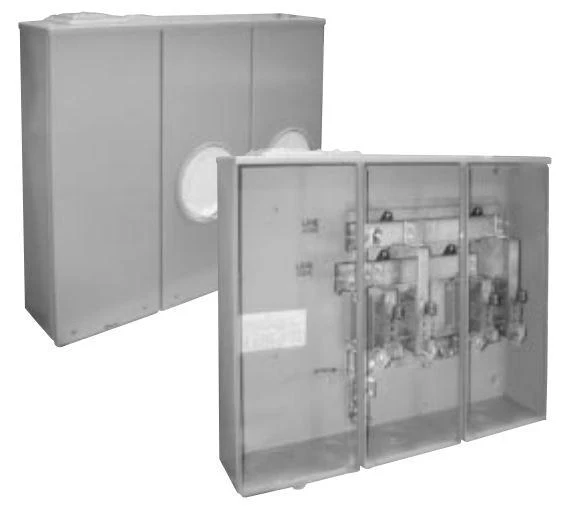

METER SOCKET 2G 400A 600V MAIN + BLANK 200A PER POSITION

HC40_Series

400 Amp Mains c/w Blank Wiring Compartment
Double entrance holes (top)
Factory Bussed 400 Amp Mains
200 Amp, 600 VOLT per position
2 - 6 position horizontal
4 Jaw meter sockets
CSA weatherproof enclosure 3
Approved conductor range: Line 1 No. 2 - 600 MCM CU/AL or two - 1/0 -250
MCM CU/AL Load No. 6 - 250 MCM CU/AL
May be field converted for use with single stud 500 mcm
