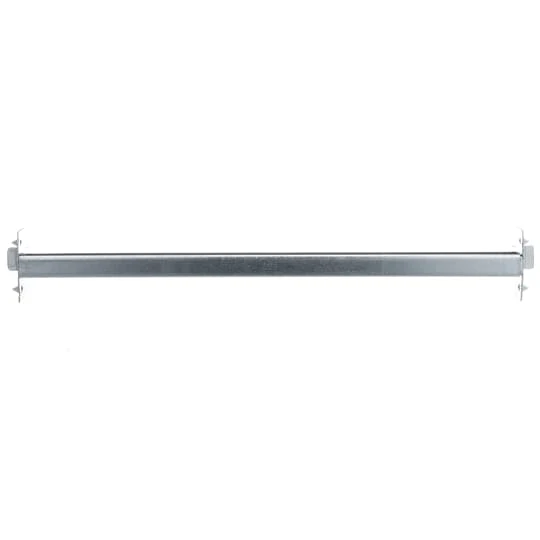

BAR HANGER ADJUSTABLE FROM 14-1/2" TO 26-1/2"

Catalog Number: 6011ADW-25
Product ID: 7TBA001350R0054
UPC Number: 78599115485
Status: Active

Adjustable bar hanger. Depth 1-3/16 inch. For 3/8 inch, 1/2" and 5/8" wall board and plaster. Score marks for drywall and plaster depths. Maximum load capacity: 50 pounds
(22.7 kilograms). Length: 14-1/2" to 26-1/2 inches. Packaged complete with fastener.

North American Specifications (UNSPSC)
UNSPSC 39121321 Electrical Box Hardware and Accessories
IGCC 4459 Electrical Box Hardware and Accessories
Brand Name Steel City
Type Bar Hangers
Special Features Claws provide temporary support for proper positioning until permanently installed.
Application For use with 3/8 inch, 1/2" 5/8" wall
board and plaster.
Standard UL E13938, CSA 12798
Material Steel
Size Length from 14-1/2 Inches to 26-1/2 Inches
Color Silver

European Specifications (ETIM)
ETIM EC002328 Accessories for junction boxes/junction
cases for mounting in the wall
Suitable for built-in installation box Y
Type of accessory Other
Packaging
Outer Quantity 25
Outer Dimensions (inches) 18.75x11.75x4.75
Weight Uom 62.5 lbs. per 100
